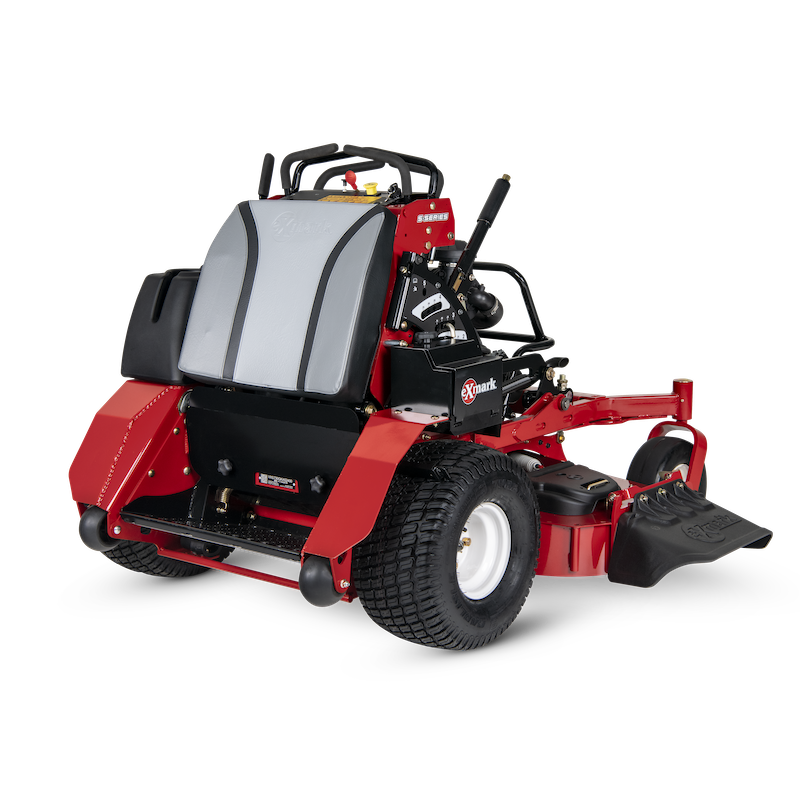

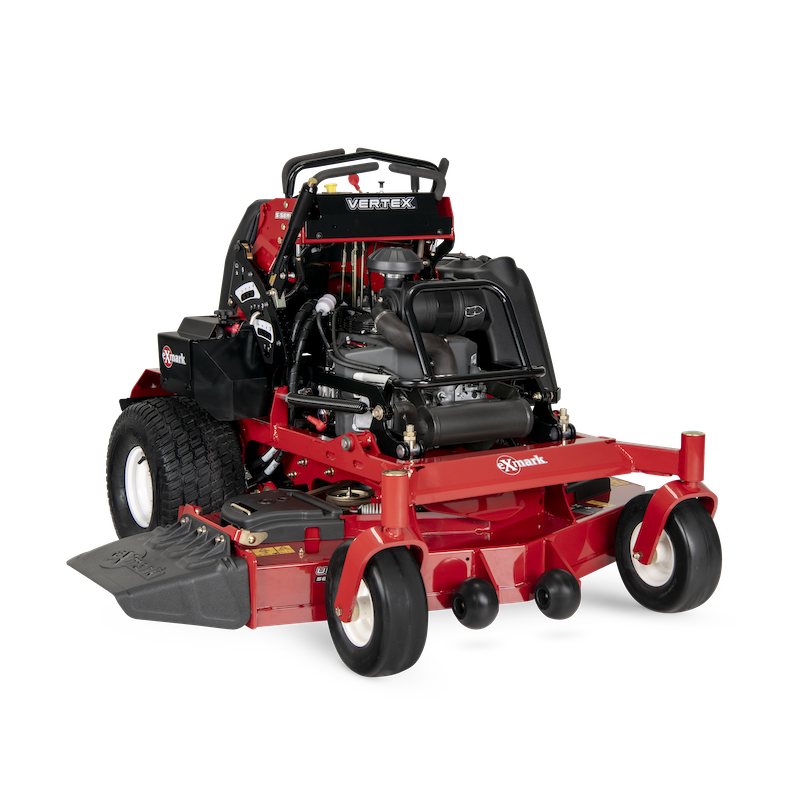

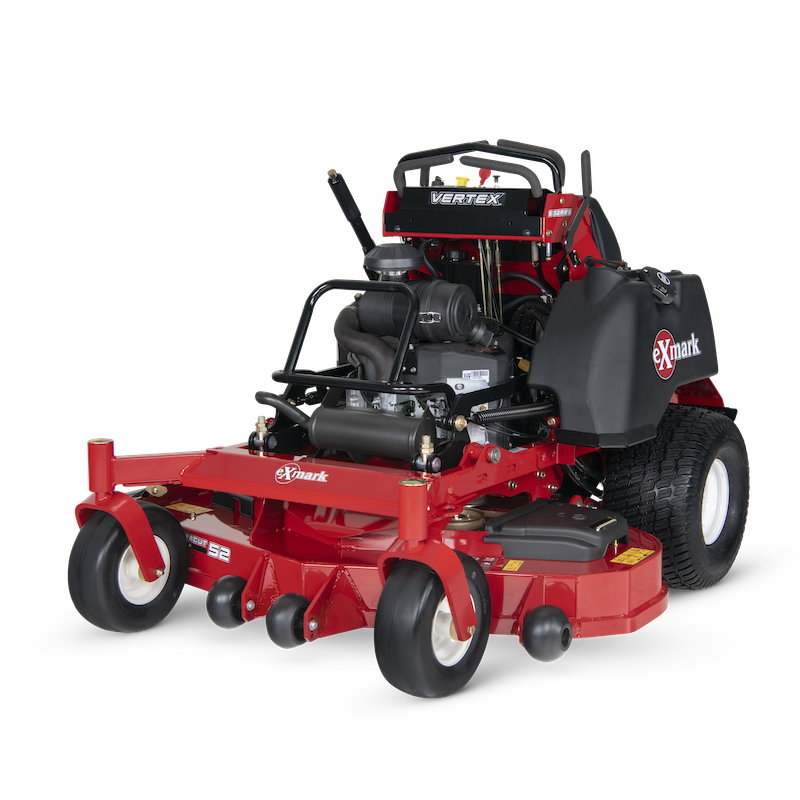

Exmark Vertex S-Series with 25 HP* Kohler EFI ECV740 Engine and 52″ UltraCut Series 4 Deck

Contact us for price

Stock status: Call Store for Availability

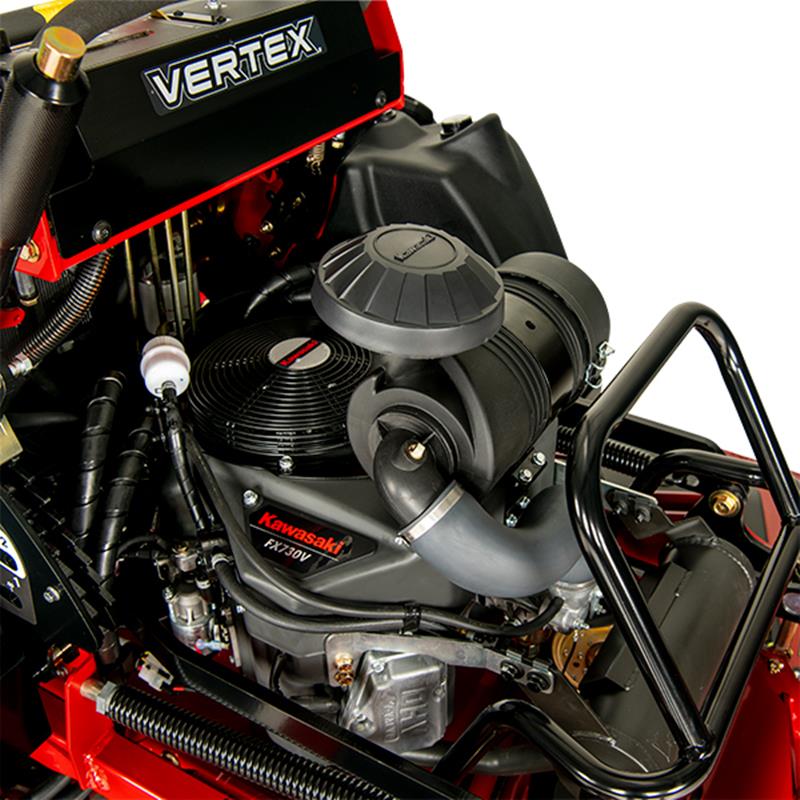

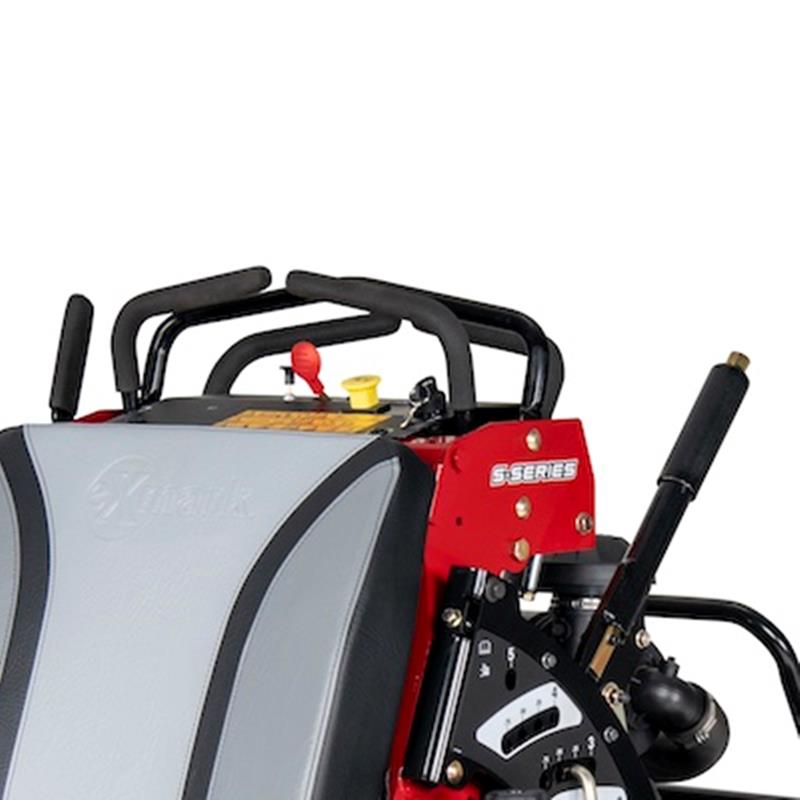

The Vertex S-Series stand-on zero-turn mowers are ready to take your productivity and profitability to the next level. With a design that centralizes mass low in the mower chassis, Vertex is ultra-maneuverable, yet stable and easy to control. The control panel is ergonomically designed and centrally located to improve operator comfort. Exmark’s proven hydro drive system delivers ground speeds of up to 8.5mph, enabling Vertex to quickly finish large jobs. Built with a Kawasaki V-Twin or Kohler EFI engine to increase fuel efficiency so you can stay out in the field longer. Choose from 48-, 52-, or 60-inch UltraCut Series 4 side-discharge cutting decks, featuring easy rake adjustment and anti-scalp rollers, for an Exmark signature finish cut quality every time.Looking for a more compact stand-on mower? Check out the Vertex E-Series.

Call Us Now Financing Offers

Specs

UPC

193308221830

Starter

Electric

Steering Control

Twin levers with center fixed reference bar for ease of control forward and reverse

Front Caster Tires

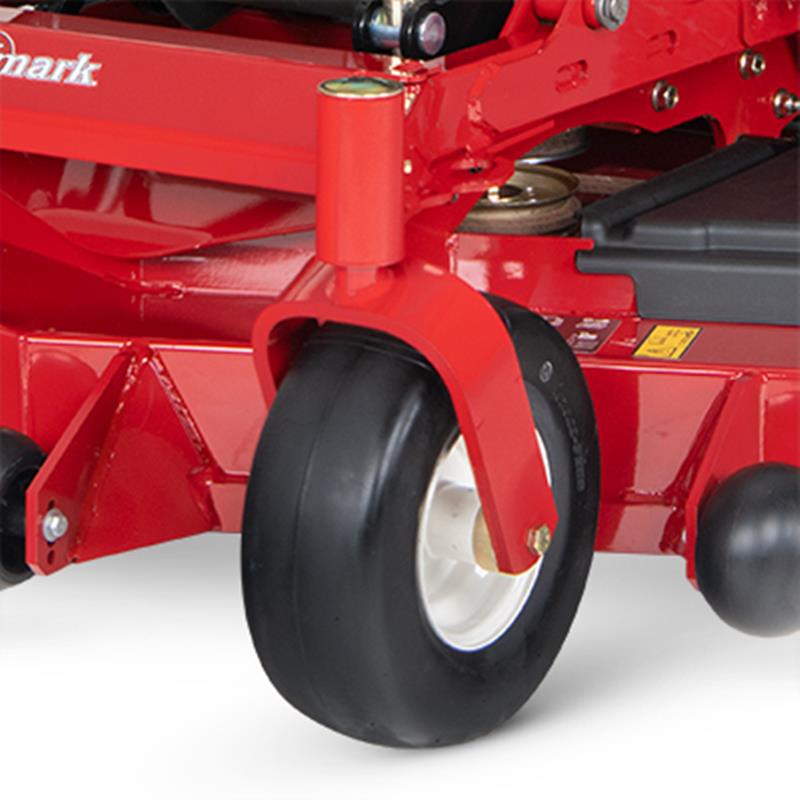

13 x 5.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.

Drive Tires

24 x 10.0-8 Carlisle Turf Master

Parking Brake

Lever-actuated bar brake.

Tractor Frame

Welded, heavy-duty 1.5″ x 2.5″ tubular steel.

Blade Spindles

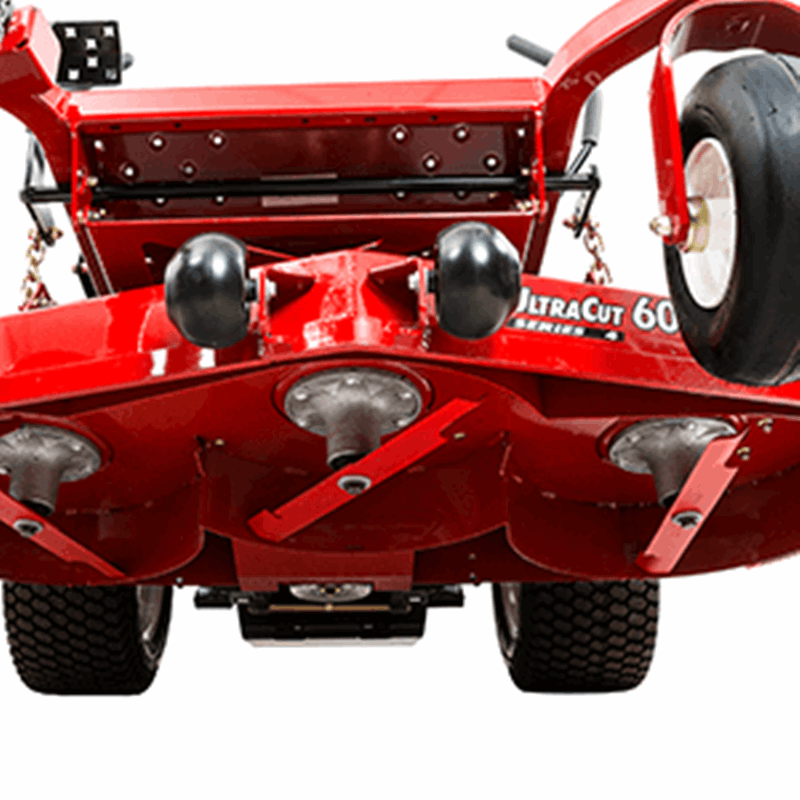

No maintenance, sealed and nongreasable spindles; 7.75″ diameter cutter housing with 1.75″ diameter splined blade driver 1.0″-diameter spindle shaft.

Cup Holder

Yes

Electrical

12-volt battery with 20-amp alternator.

Standard Features

Enhanced Engine Hour Meter

Engine Brand

Kohler

Transmission Brand

Hydro-Gear

Transmission Speeds

Infinitely Variable

Engine Model

ECV740

Engine Displacement

747

Transmission

Hydrostatic

Speed

Infinitely variable speed selection 0–8.5 mph forward

Engine Series

Command™ EFI

Fuel System

Electronic Fuel Injected

Engine Speed

3,750 rpm

Fuel Capacity

8-gallon single fuel tank on LH side

Air Filter

Heavy-duty canister air filtration system

Drive Description

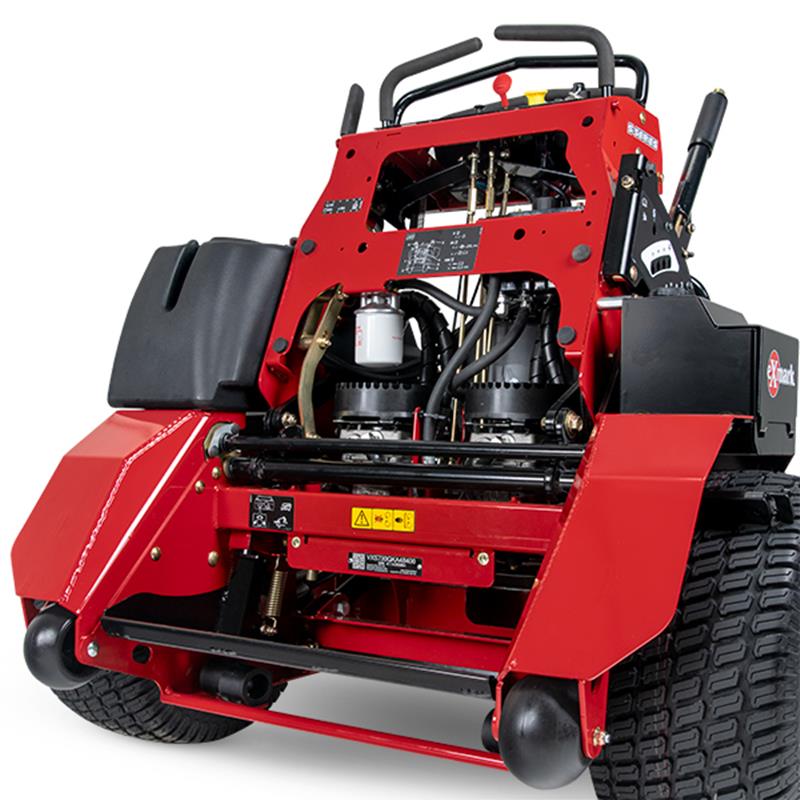

Two Hydro-Gear 12 cc pumps powering two Parker 14.5 cubic inch motors.

Fuel Type

Gas EFI

PTO Engagement

Warner 175 ft-lb clutch

Drive System

Hydro-Drive

Fuel Indicator

Float gauge

Drive Wheel Release

Allows unit movement without engine running.

Deck Lift

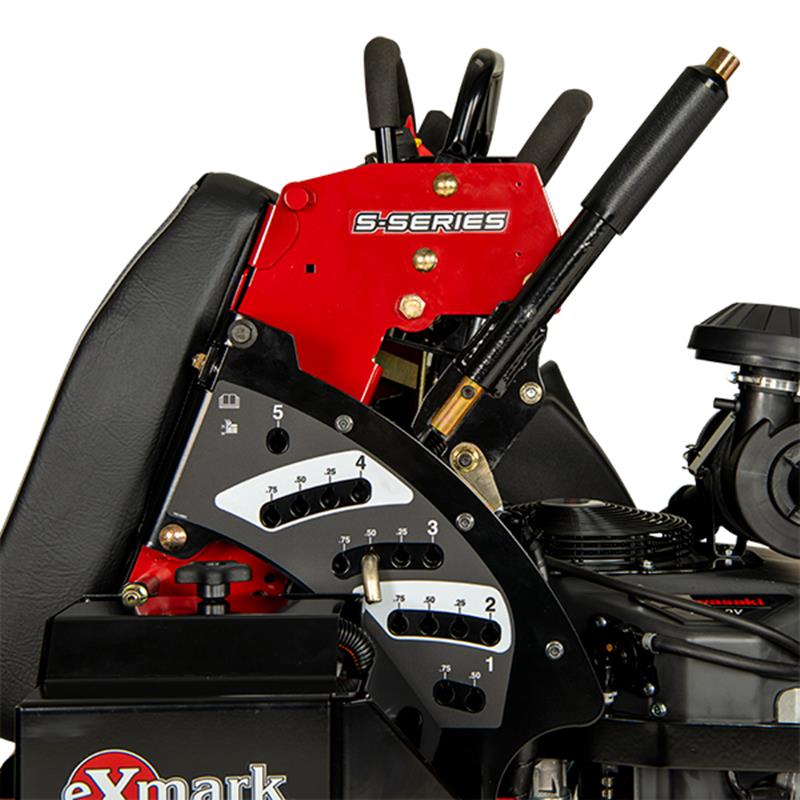

Single point HOC; with mechanical lift-assist springs.

Carb Compliant

NO

Safety Package

Operator Presence Controls (OPC) with safety interlock system indicators

Deck Style

Floating Deck

Deck Style Description

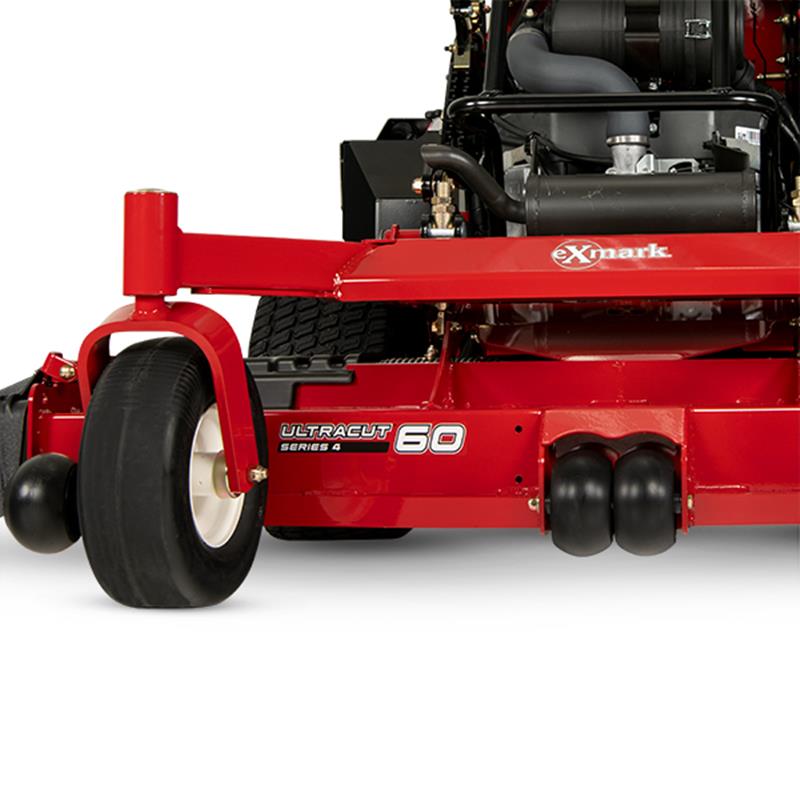

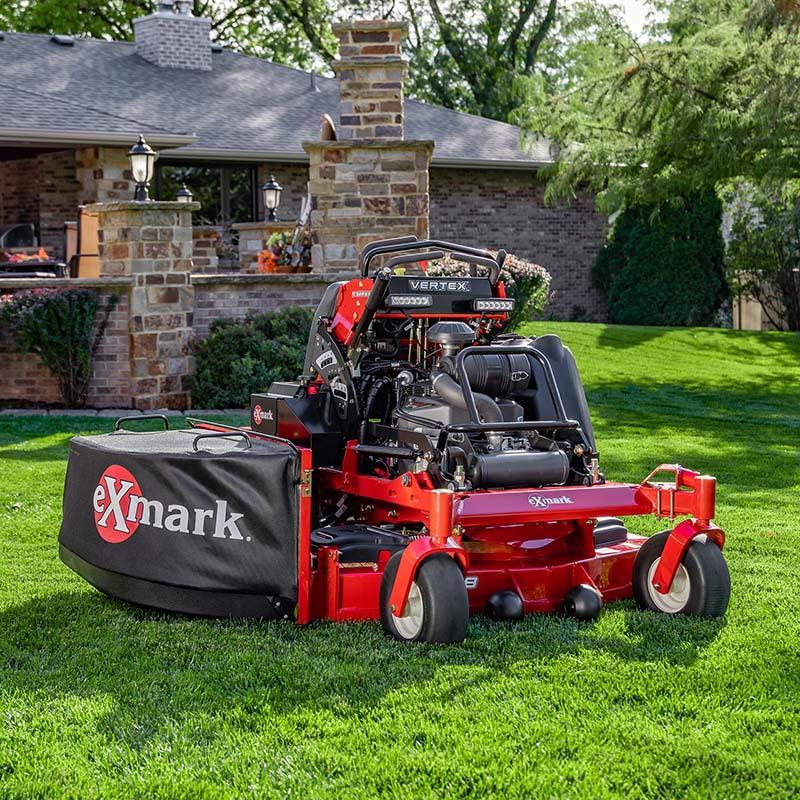

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

52″

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt

Cutting Heights

1.5″ to 5.0″ in 0.25″ increments

Blade Tip Speed

Approximately 18,500 fpm

Blades

3 Blades at 18.00″ Length

Width

64.79″

Height

49.2″

Curb Weight

987

Length

65.33″
